Sounds, signals and software: A Crootn deepdive

[Croot_Overlord]

I really appreciate everyone's contributions to the forum. Love the threads from @Nape and the owl thread from @Sloppy Mexican

The board might not move as fast as the main board, but I feel like the content quality here has been off the charts.

I want to contribute something that is personal to me and maybe I can help some peeps on here learn something. It might bore your socks off, but bear with me and I think I can make it where people can understand some science things a bit better

I really want to try and demystify this shit right here:



[Croot_Overlord]

Sounds provide a very good analog that we can learn how they work and then scale them up to something like electromagnetic fields.

Sounds are basically pressure waves. We use our voice box (or any other medium) to vibrate the air. Those vibrations propagate through the air around us, and can be received by other things (like our ears, or a microphone) that have something that can be vibrated by the pressure wave, and convert the wave to information.

Don't overthink it too much yet.

But let's understand how a microphone works. Basically, a sound vibrates a pressure plate and that vibration is converted to a voltage signal.



[Croot_Overlord]

Here is some code I wrote in matlab. The lines that start with % are comments that try and describe what the lines below do:

%the code right here just leverages a matlab toolbox so I can use the
%speaker on my headset to capture data from my voice
s = daq.createSession('directsound');
addAudioInputChannel(s,'Audio1','1','Audio')

%tf is the time that the computer will be acquiting data while I speak
tf = 1;
s.DurationInSeconds = tf;

%this section gives me a note on the screen when the computer is
%collecting data, and another message when the collection is over
disp('Starting foreground acquisition');
data = startForeground(s);
disp('Foreground acquisition finished');

%all I am doing here is plotting the vibration of the air created by my
%voice with respect to time
figure;
t = linspace(0,tf,length(data));
h = plot(t,data);
xlabel('Time (s)')
ylabel('|Y(f)|')
grid on;

%Here is a plot that shows the fourier transform of the data. The fourier
%transform converts time domain to frequency domain. Don't think about it too much,
%but basically I can convert the above signal and see what specific
%frequencies are in there
fft_data = fft(data);
figure;plot(abs(fft_data)*1/s.Rate);
xlim([0 10000]);
grid on;



[Croot_Overlord]

I recorded myself making two kinds of sounds. I attempted to make a "low" frequency sound with a deep voice, and then a "high" frequency sound with a high pitched voice.

Below are the plots with respect to time. The low frequency sound is on the top, and the high frequency sound is on the bottom.

These are plots of the vibrations of the air over time.

You will notice that the vibrations are spaced further apart on the low frequency plot (slower vibrations), and closer together on the high frequency plot (faster vibrations)

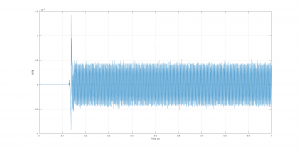

Low frequency sound versus time:

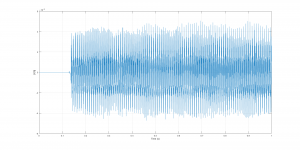

High frequency sound versus time:
